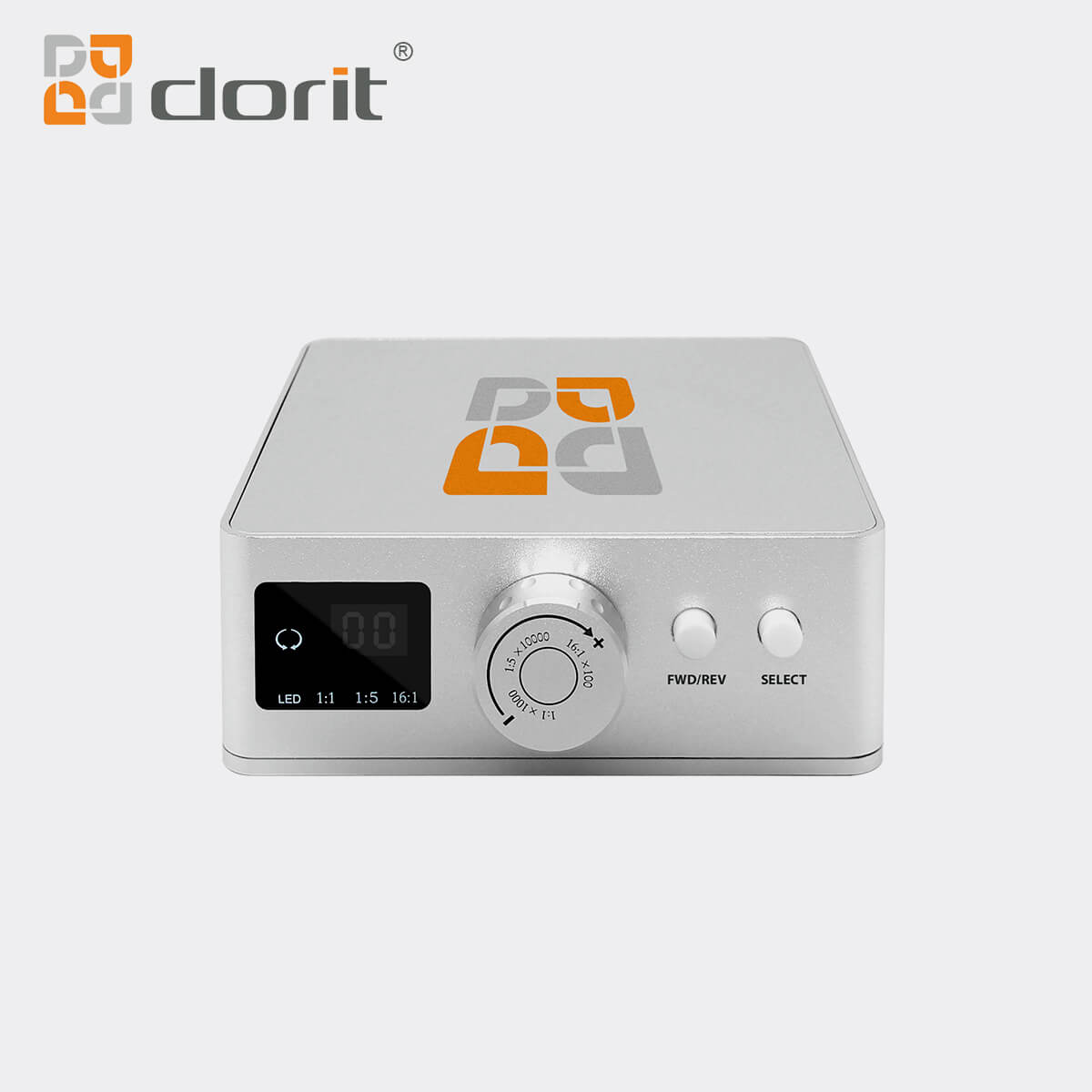

Dorit DR-ME5 dental electrical motor with led

Dorit dental electrical motor with led
With precision motor and high-brightness LED, this product has the following features: no regular
maintenance, micro-vibration and low noise, easy operation, Easy to use. Just connect the original
water pipe, mist pipe, and trachea tap to the motor, and connect the other tap of the trachea to the drive
module. You can use the original pneumatic control system and complete most clinical treatments with
different speed-increasing and decelerating handpieces.
  • DR-ME5

  • DORIT

  • led motor

Availability:
  • Product model: DR-ME5
  • Technical parameters:
   (1) No-load speed: 1000-40000r/min, the error in both clockwise and counterclockwise running
  directions does not exceed ±10%.
  (2) Power supply: DC32V~36V
  (3) Noise: no more than 65dB
  (4) Torque: more than 2N·cm
  (5) When the water pressure is 200kPa (2.0bar), the water flow rate is not less than 50mL/min.
 The air flow is not less than 1.5L/min;
 When the air pressure is 250kPa~500kPa (2.5bar~5.0bar), the maximum air flow shall not exceed
 40L/min.
 (6) Working mode: Intermittent loading and continuous operation, working for 30 minutes with a gap of
 5 minutes
 (7) Classification according to the degree of protection against electric shock: BF type applied parts
 (8) Operating conditions
Ambient temperature range: 5℃~40℃
Relative humidity range: ≤80%
Atmospheric pressure range: 86kPa~106kPa
